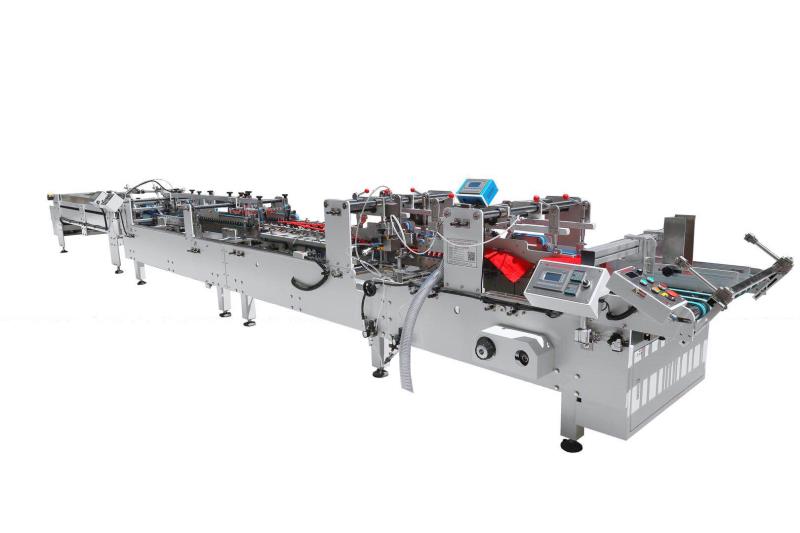

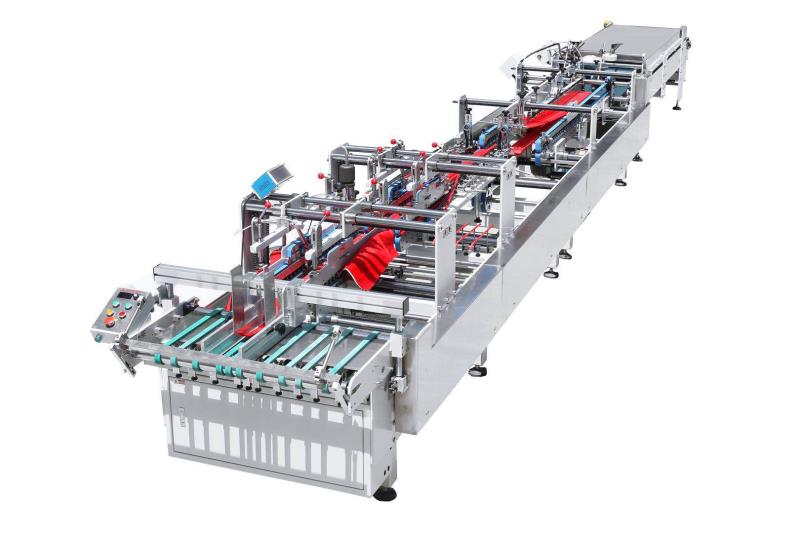

Transparent PET Box Folder Gluer
Specification:
Model | CL-800T | Max. Box Width | (800) mm |
Motor | Taiwan Sheng Bond | Min. Box Width | 50mm |
Solenoid | USA brand MAC | Max. Speed | 135m/min |
VFD | Japan Panasonic | Machine Length | (9800mm for CL-800T)
|
Voltage | 380v/50 Hz or 60Hz | Machine Height | 1200mm |
Power | 4.5kw | Machine Width | 1300mm |
Relay | Schneider | Max. Air Qty | 0.73/min |
PUR Spray Applicator | Cheng Lin Brand | Machine Weight | 2 Tons |
PLC | Japan Panasonic | Material | PET/PVC/PP transparent or printed plastic box with Die-cut single line or HF soft creasing double line |
1. High speed fully automatic feeding & folding & gluing (no need do any further process by worker).
2. 4 in1 functions (Gluing PP box with hot air, spray PVC/PET liquid glue, spray PURglue , gluing tiny box).
3. Single line (by die-cut) or double line (HF soft creasing line) directly can be processed by our machine
( no need pre-fold by worker ).

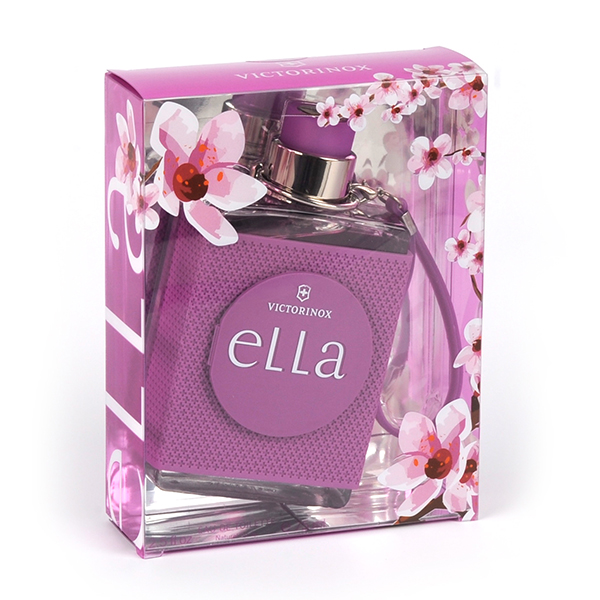

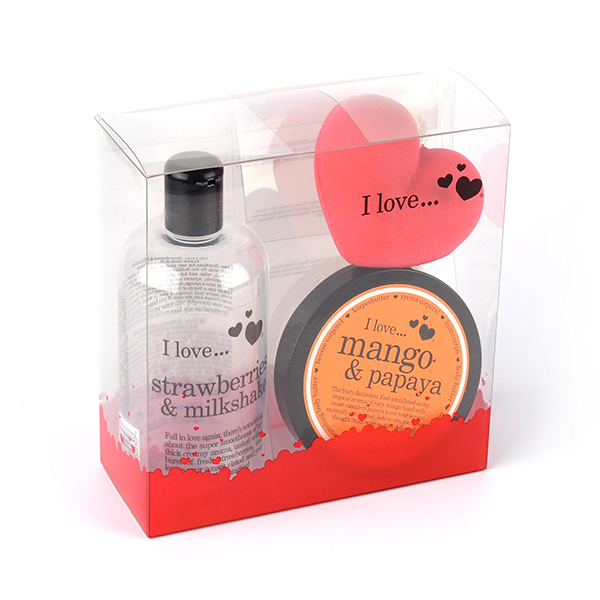

4. Can glue PVC, PET, PP transparent or printed plastic boxes.
5. Can glue all kinds of PP boxes without using adhesive (Twill, Frosted or Transparent),Strong,
beautiful and eco-friendly.
6. Can glue inner, middle or outer line (1-3 line or 2-4 line)
7. Imported brand name VFD motor, speed adjustable; stable function with low defective rate max. 1%;
high productivity, very economical.
8. Our machine only need 2workers, 8 hours can make min. 70k to 80k pieces for 100mm to150mm
length boxes.
9. Humane design, fast adjust and easy operate, one hex wrench can be used for most ofparts.
10. We can Tailor-made machine for your special boxes.
